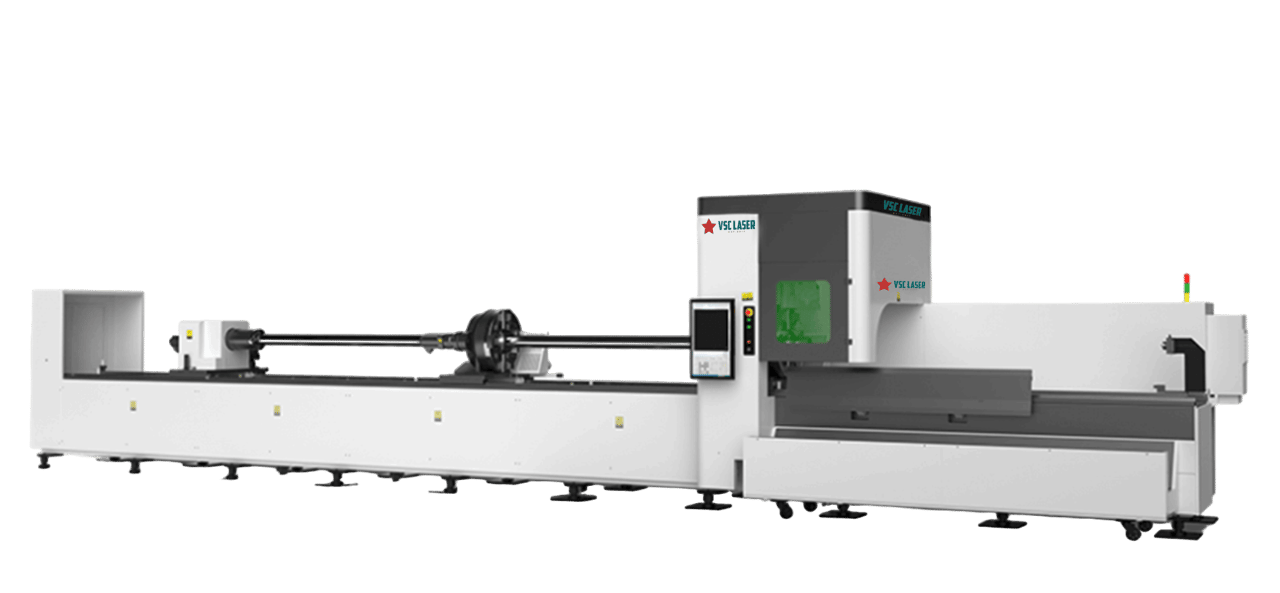

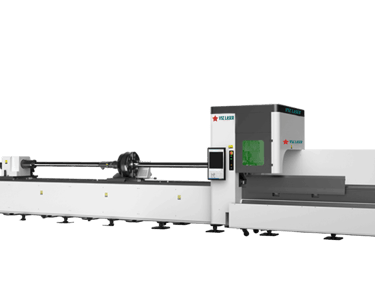

Three-chuck Professional Fiber Laser Tube Cutting Machine
GS-HG Series
1000W-6000W
Cutting Capacity of Round Tube：0.05′ – 0.72′
Cutting Capacity of Square Tube：0.05′ – 0.49′
Max. Length of Tube: 19.69′
Specifications
Three-chuck Professional Fiber Laser Tube Cutting Machine

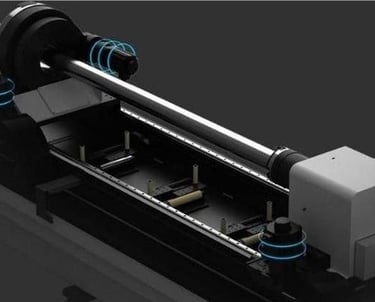

Automatically Correct Deformation of Pipes
The unique design of the three-chuck can automatically correct the bending deformation of tiny pipes (≤30mm), ensuring cutting accuracy. It can also prevent pipes from shaking when cutting pipes with large aspect ratios (such as 80*10mm).
Real Zero Tailing Cutting
With an automatic loading and unloading system, it can achieve stable loading and unloading of 4~6m pipes with almost no manual intervention, saving labor costs.

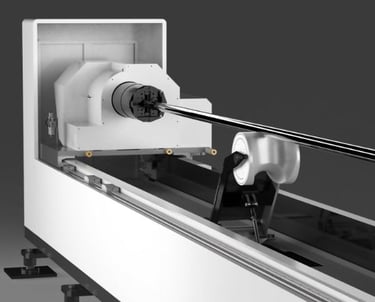

Self-developed Chuck
Adopt high-quality chuck independently , with clamping concentricity ≤0.1mm. It can clamp pipes of different diameters and cross-sections without changing the jaws. The chuck is equipped with a dust removal system, ensuring high efficiency in dust and slag removal.

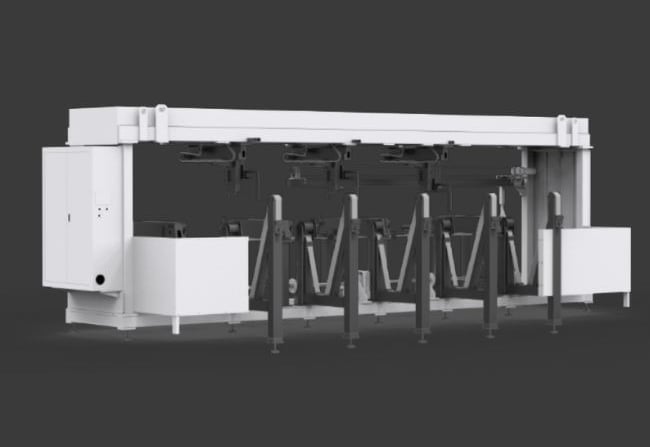

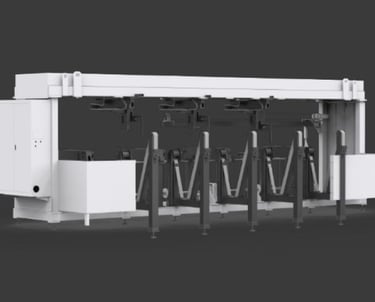

Fully AutomaticLoading and Unloading
The industry-unique zero tailing cutting function with three chucks truly achieves zero waste of pipes, saving material costs.

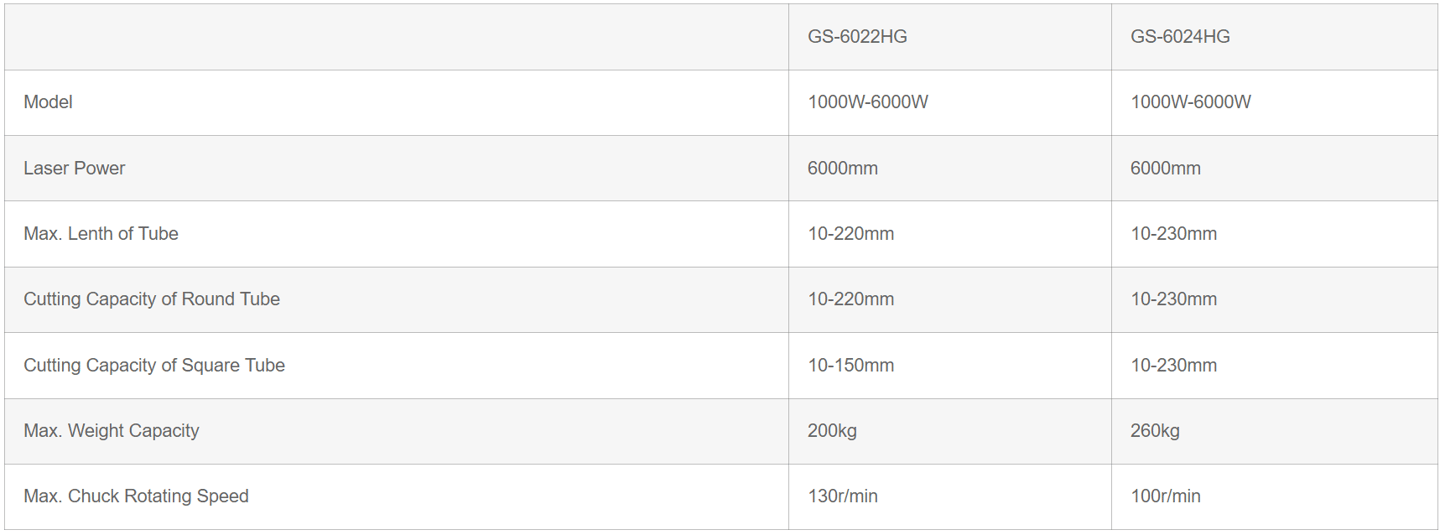

Technical Parameter
Three-chuck Professional Fiber Laser Tube Cutting Machine
1000W-6000W
Laser Power
GS-HG Series
Series

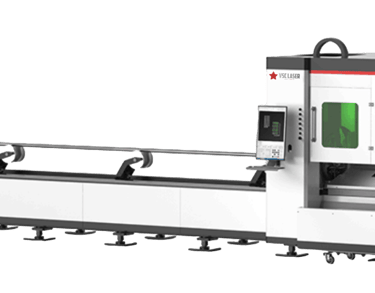

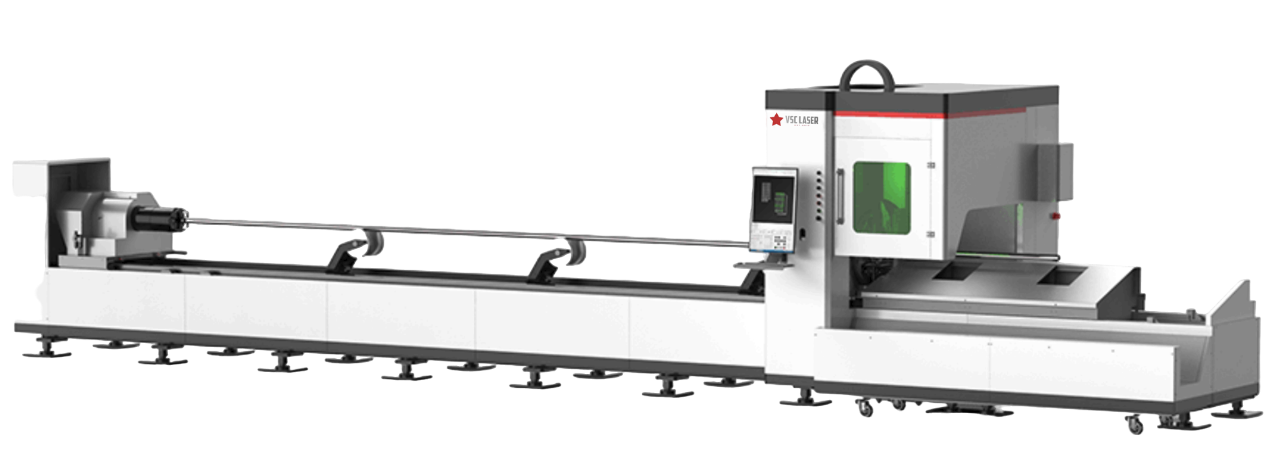

Two Chuck Professional Fiber Laser Tube Cutting Machine
VS-TG Series
1000W-6000W
Cutting Capacity of Round Tube：0.03′ – 1.18′
Cutting Capacity of Square Tube：0.03′ – 0.82′
Max. Length of Tube: 19.69′
Specifications
Two Chuck Professional Fiber Laser Tube Cutting Machine

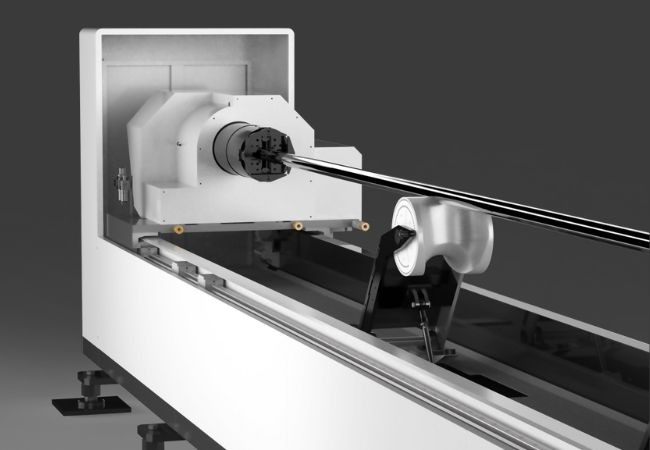

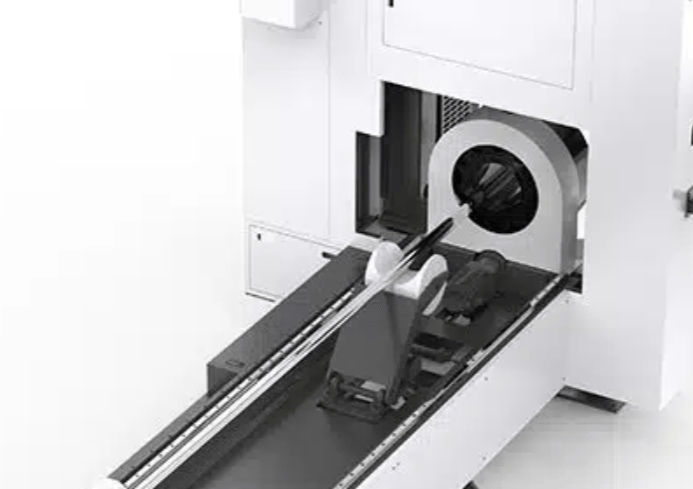

Self-developed Chuck
Adopt high-quality chuck, the clamping concentricity is ≤0.1mm. It can clamp pipes of different diameters and cross-sections without changing the jaws. The optional double-row roller jaws make it efficient to cut extremely small tubes(10-30mm).

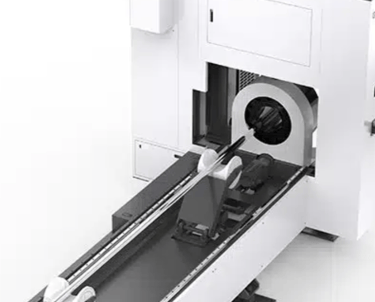

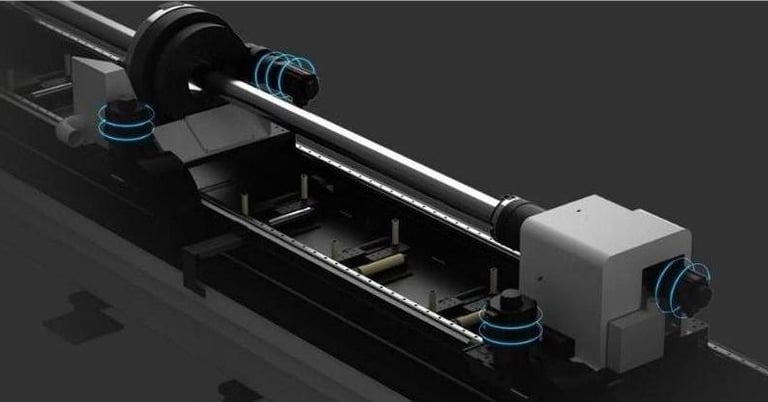

Variable Diameter Wheel Support
The machine supports pipes of different diameters. Switching to pipes with other diameters only requires manual wheel adjustment, eliminating the need for replacement. This feature offers a wide application range, making it highly flexible and convenient.
High-Quality Machine Bed
Cage structure welded machine bed, processed by gantry milling, ensures no fear of deformation, thus preventing any impact on cutting accuracy. The machine has a long lifetime, maintaining high precision for long-term operation.
High-Quality Accessories
The machine features a separated design for chain and cable, with the air pipe joint equipped with a sealing ring to prevent impurities from entering the gas path. It incorporates a professional industrial computer with a high-temperature resistant design, enabling the machine to operate at full load.

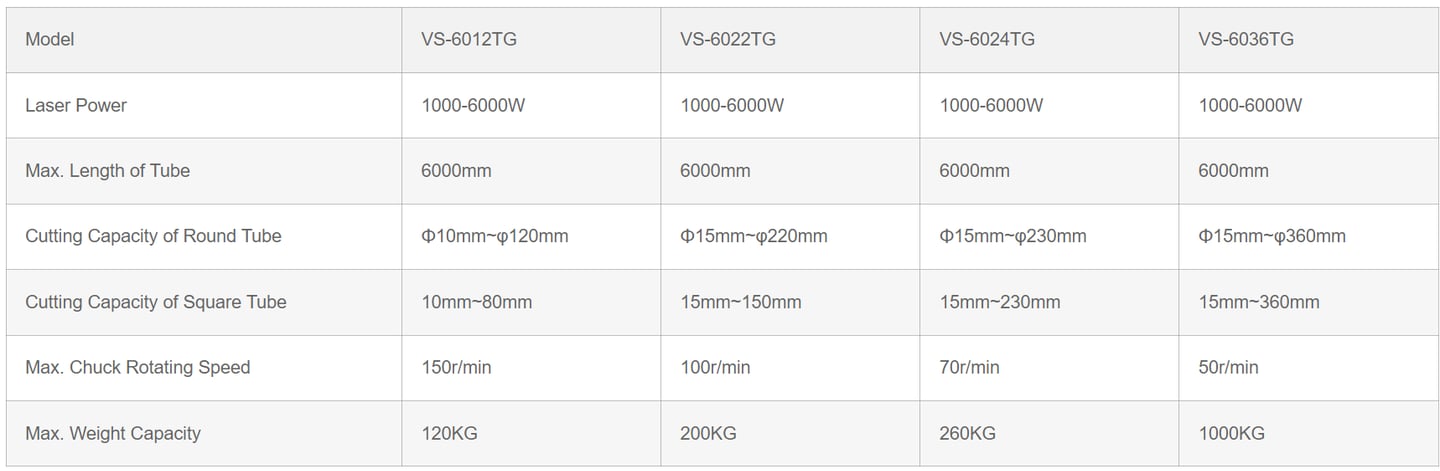

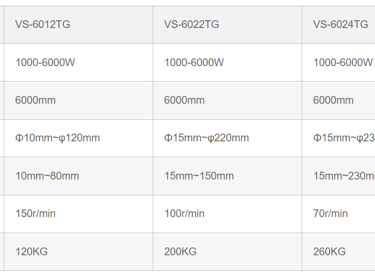

Technical Parameter
Two Chuck Professional Fiber Laser Tube Cutting Machine
1000W-6000W
Laser Power
VS-TG Series
Series
